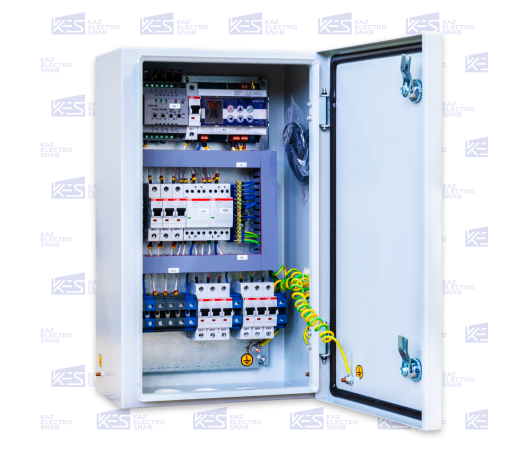

SHUNO - outdoor lighting control cabinet

Узнать стоимость

SHUNO - outdoor lighting control cabinet выберите мощность

Automation of lighting control systems ASUNO

The automated outdoor lighting control system (ASUNO) is a hardware and software complex for dispatching remote objects based on GSMGPRS networks, the main components of which are the control system equipment (lighting control cabinet) and the dispatch center software

The ASUNO system is designed for centralized collection, storage and provision upon request of information on the operating modes of outdoor lighting and the state of the equipment used:

Automatic, automated and manual control of outdoor (street) lighting; Collection and transmission to the control center of information on energy consumption, electrical network parameters, as well as on the quality of electricity;

Formation of the visual environment of the system operator (dispatcher);
Timely detection of emergency situations at all levels of the system;
Formation of conclusions on the condition of lighting lamps;
Storage and processing of energy consumption data;
Providing energy consumption data to sales and control organizations.

The ASUNO system will allow:

Create a single control center for outdoor lighting (centralize);
Allows remote reading of meters. In addition, when connecting additional functional modules, the system has the ability to group dimming (lighting control) of lamp lines and individual control and dimming of each lamp without the need to lay additional control cables;
Reduce operating costs;
Optimize energy consumption;
Implement energy saving programs and evaluate their effectiveness;
Speed up the detection and elimination of accidents, monitor emergency situations in real time;
Combine different lighting systems;
Dimming of lamps (reducing brightness at night) is as flexible as possible, achieving additional energy savings of up to 80%;
Receive feedback from each lamp (monitoring), including: fault detection, operating time, energy consumption, as well as display the lamp fleet on an electronic city map and flexibly adjust lighting depending on the burning schedule, city zones and transport traffic;
Ability to work with any lamps. At the moment, the system is successfully integrated with lamps of the world leader in the field of outdoor lighting - Philips Lighting;
Reliable and easy-to-repair ASUNO equipment is designed taking into account local climatic conditions and electrical network parameters;
The customer is supplied with a complete software package, including a service program for setup;
The main advantage of the proposed system is the possibility of implementing the automated control system in the field of SMART CITY and the Internet of Things (IoT), which means long-term prospective development of relations with the city;
In addition, the introduction of a comprehensive automated control system is, first of all, the modernization of existing networks and/or the construction of new outdoor (street) lighting networks, where modern “smart” LED lamps will be used to achieve maximum energy savings while maintaining lighting standards;
Despite the maximum possible functionality and the most modern technological standards implemented in ASUNO, the system is one of the most cost-effective solutions on the market, which allows its successful implementation without creating an excessive investment burden on the project.

Characteristics	SHUNO
Number of phases	3
Number of contactors controlling phases	2 as standard
Main circuit voltage, V	380
Control circuit voltage, V	220
Maximum current, A	63
Frequency of alternating current, Hz	50
Switching devices	Contactor (maximum current 63 A)
Metering device	Three-phase electronic meter, active and reactive energy, type DALA SA4-E720 R TX IP P RS D, I=10(100) A, U=3x220/380V, cl.t.1.0 – according to AE, 2 – according to RE.
Degree of protection	IP65
Climate performance	UHL
Accommodation category	1
Grounding system	TN-S
Overall dimensions (D×W×H) including base, mm	800×1100×280
Weight, kg	Up to 70
Operating temperature range, °C	–40 … +60
Protection from unauthorized access	Internal mechanical lock, external hinges for padlock
Lighting line control	According to the annual schedule in automatic and manual mode with the possibility of remote switching on and off
Emergency alarms	Unauthorized opening of the SHUNO, lack of input voltage, tripping of the protective automation, lack of current on the outgoing phases when lighting is turned on according to the schedule or the dispatcher's command. No voltage on the outgoing power line. Break in the controlled line. The circuit breaker on the line has tripped or the starter contacts are faulty. There is no voltage on the panel of the remote controlled object. Monitoring the opening of the control cabinet or access to the room where the control panel is installed. Dimming error. Communication error. Increased voltage/Low voltage.
Organization of communication	Using GSM (GPRS) network / SMS, MMS modes
Taking into account the electrical characteristics of the street lighting network	3-phase electricity metering (active, reactive – storing the history of half-hour energies for 30 days), measurements of phase currents and voltages (resolution – 15 minutes) – data per day, transfer of all readings to the upper level automatically and at the request of the dispatcher
Annual schedule of lighting devices, modes	Evening, night, emergency lighting; flexible system of remote change of the annual schedule.
